Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System

Name: Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System
Brand: Yamei
Price: 1 USD

Brand Name : Yamei

Model Number : JCPT1212HD

Certification : CE, ISO9001, ISO14001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 units 30 days

Delivery Time : 30 working days

Packaging Details : Standard package suitable for container shipment

Surface : painting

Color : orange

Drive : hydraulic

Material : Manganese steel

Platform : extendable

Control : Proportional

Contact Now

Self Propelled Scissor Lift Aerial Working Platform 10m Hydraulic Drive

Applications

It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline

Standard features

● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis

Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System

Production Specification

Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System

Production Specification	JCPT1212HD
Measurement
Working Height Max.	12m
A Platform Height Max.	10m
B Platform Height Stowed	1.93m
C Platform Length-outside	2.43m
Extended	3.33m
Slide-out Platform extension deck	0.90m
D Platform Width	1.15m
E Height-stowed: guardrail raised	2.44m
F Length-Stowed	2.43m
G Width	1.21m
H Wheel Base	1.87m
I Ground Clearance	10cm
J With Pothole Guards Deployed	1.9cm

Productivity
Max. Platform Occupancy	2
Lift Capacity	320kgs
Drive speed-stowed	3.5km/h
Drive speed-Raised	0.8km/h
Gradeability	25%
Max. Tilt	3°/ 2°
Turning Radius(inside)	0
Turning Radius(outside)	2.33
Raise/lower speed	45/36sec
Non-marking tires	Φ381×127

Power
Power Source	24V/3.3KW
Battery	4x6V/225Ah

Product Tags:

mobile hydraulic scissor lifting platform

mobile hydraulic lifter

China Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System wholesale

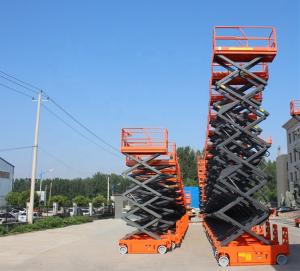

Heavy Duty Mobile Scissor Lift Electronic Safety Tilt Protection System Images
