Industrial Self Propelled Aerial Platform / Self Propelled Lift Table 227 KG Capacity

Hefei Yamei Technology Co., Ltd.
Contact Now

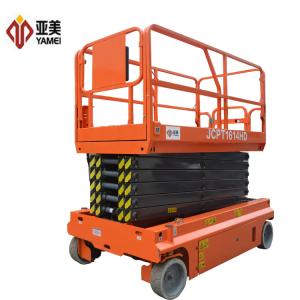

Industrial Self Propelled Aerial Platform / Self Propelled Lift Table 227 KG Capacity

  • 1
  • 2
  • 3

Brand Name : Yamei

Model Number : JCPT1614

Certification : CE, ISO, IPAF, TUV

Place of Origin : China

MOQ : 1set

Payment Terms : T/T, L/C

Supply Ability : 200sets per month

Delivery Time : 10-30 work days

Packaging Details : Yamei Standard package suitable for container shipment

Color : Orange, Blue

capacity : 227 KG

Max. working height : 15.70M

Max. platform height : 13.70M

Overall length : 2.84M

Overall width : 1.39M

Platform size : 2.64M*1.12M

Platform extension size : 0.9M

Tire size : ¢381MM*127MM

Work maximum angle : 2°/3°

Max dimbing ability : 25%

Warranty : 1 Year

Contact Now


Yamei 14m Self-Propelled Aerial Work Platform Scissor lifts


Yamei self-propelled scissor lift covers working height from 3.9m-16m , which is suitable for indoor or outdoor use on solid flat ground.
The product is compact in structure and flexible to operate. Equipped with perfect security sensor, it delivers lower noise, superb operability, which is ideal for narrow working conditions requesting higher flexibility.


Scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on. Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working more convenient.


Scissor lifts specifications

Hydraulic drive series 3.9m 5.8m 6m 8m narrow 8m 10m 12m 14m
Model:
(Hydraulic drive)
JCPT 0607 HD JCPT 0807 HD JCPT 0808 HD JCPT 1012 HD JCPT 1008 ZHD JCPT 1212 HD JCPT 1412 HD JCPT 1614 HD
S. W. L 240KG 230 KG 380 KG 450 KG 230 KG 320 KG 320 KG 227 KG
S.W.L on extensin 100KG 113 KG 113 KG 113 KG 113 KG 113 KG 113 KG 113 KG
Max. working height 5.9M 7.8M 8M 10M 10M 12M 13.8M 15.70M
Max. platform height 3.9M 5.8M 6M 8M 8M 10M 11.80M 13.70M
Overall length 1.44M 1.83M 2.435M 2.435M 2.435M 2.435M 2.435M 2.84M
Overall width 0.76M 0.81M 0.81M 1.15M 0.81M 1.15M 1.15M 1.39M
Overall height
(rails up)
2.03M 2.1M 2.20M 2 . 32 M 2 . 32 M 2 . 44 M 2 . 58 M 2 . 59 M
Overall height
(rails down)
1.67M 2 .05M 1 .87M 1 .78M 1 .89 M 1 .92M 2 .04 M 2 .05 M
Platform size 1.29M*0.70M 2.635M*0.75M 2.27M*0.8M 2.27M*1.12M 2.27M*0.81M 2.27M*1.12M 2.27M*1.12M 2.64M*1.12M
Platform extemsion
size
0.6M 0.9M 0.9M 0.9M 0.9M 0.9M 0.9M 0.9M
Lift motor 24V/1.2KW 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/4.5W
Travel speed
(stowed)
4KM/H 3.5KM/H 3.5KM/H 3.5KM/H 3.5KM/H 3.5KM/H 3.5KM/H 3.5KM/H
Travel speed
(raised)
0.5KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H
Up/down speed 32/27SEC 18/22SEC 24/54SEC 28/38SEC 28/40SEC 45/36SEC 84/38SEC 88/60SEC
Battery 2*12V*115AH 4*6V/225AH 4*6V/225AH 4*6V/225AH 4*6V/225AH 4*6V/225AH 4*6V/240AH 4*12V/300AH
Charger 24V/10A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A
Max dimbing ability 30% 25% 25% 25% 25% 25% 25% 25%
Work maximum angle 2°/3° 1.5°/3° 2°/3° 2°/3° 2°/3° 2°/3° 1.5°/3° 2°/3°
Tire size ¢323MM*100MM ¢305MM*100MM ¢381MM*127MM ¢381MM*127MM ¢381MM*127MM ¢381MM*127MM ¢381MM*127MM ¢381MM*127MM
G.W 920KG 1475KG 1970KG 2240KG 2015KG 2500KG 2880KG 3280KG
