Self Propelled Scissor Lift Aerial Working Platform 13.7m Electric Drive
Application
The self propelled aerial working platform are designed to improve human aerial working condition.
Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.
All our platform are stable performance, flexible and smarter operation,more reliable as passed
by endurance test.
Quality Assurance
The main parts are from famous brand suppliers.
We pass by ISO9001 quality management system and ISO4001 environment management system .
Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives.
Standard features
● Proportional control
● Automatic Pothole Guard System
● Solid non-marking tires
● Auto brake system
● Emergency platform lowering system
● Emergency stop button
● Hour meter
● Cylinder holding valve
● Onboard diagnostic system
● Flashing Beacon
● Electronic horn
● Extension platform
● Descent alarm
● Descent protection
● Tilt protection system
● Folding rails
● Protection bar around chassis
Production Specification

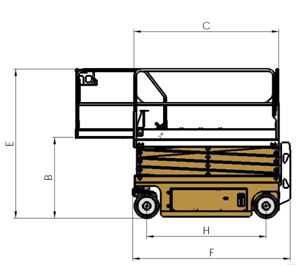

| Production Specification | JCPT1614DC |
| Measurement | |
| Working Height Max. | 16m |
| A Platform Height Max. | 14m |
| B Platform Height Stowed | 2.06m |
| C Platform Length-outside | 2.84m |
| Extended | 3.74m |
| Slide-out Platform extension deck | 0.90m |
| D Platform Width | 1.39m |
| E Height-stowed: guardrail raised | 2.59m |
| F Length-Stowed | 2.84m |
| G Width | 1.45m |
| H Wheel Base | 1.87m |
| I Ground Clearance | 10cm |
| J With Pothole Guards Deployed | 1.9cm |
| | |
| Productivity | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 227kgs |
| Drive speed-stowed | 3.5km/h |
| Drive speed-Raised | 0.8km/h |
| Gradeability | 25% |
| Max. Tilt | 3°/ 2° |
| Turning Radius(inside) | 0 |
| Turning Radius(outside) | 2.33 |
| Raise/lower speed | 88/60sec |
| Non-marking tires | Φ381×127 |
| | |
| Power | |
| Power Source | 24V/3.3KW |
| Battery | 4x6V/225Ah |
