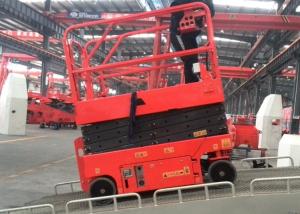

Self Propelled Scissor Lift Aerial Working Platform 6m Electric Drive
Application
The self propelled aerial working platform are designed to improve human aerial working condition.
Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.
Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
Main Parts
The main parts are from famous brand suppliers.
All our platform are stable performance, flexible and smarter operation,more reliable as passed
by endurance test.
Standard features
● Proportional control
● Automatic Pothole Guard System
● Solid non-marking tires
● Auto brake system
● Emergency platform lowering system
● Emergency stop button
● Hour meter
● Motion alarm
● Electronic horn
● Extension platform
● Descent alarm
● Descent protection
● Tilt protection system
● Folding rails
● Protection bar around chassis
● Cylinder holding valve
● Onboard diagnostic system
● Flashing Beacon
Production Specification
| Production Specification | JCPT0808DC |
| Measurement | |
| Working Height Max. | 8m |
| A Platform Height Max. | 6m |
| B Platform Height Stowed | 1.86m |
| C Platform Length-outside | 2.40m |
| Extended | 3.30m |
| Slide-out Platform extension deck | 0.90m |
| D Platform Width | 0.81m |
| E Height-stowed: guardrail raised | 2.20m |
| F Length-Stowed | 2.43m |
| G Width | 0.87m |
| H Wheel Base | 1.87m |
| I Ground Clearance | 10cm |
| J With Pothole Guards Deployed | 1.9cm |
| | |
| Productivity | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 230kgs |
| Drive speed-stowed | 4.0km/h |
| Drive speed-Raised | 0.8km/h |
| Gradeability | 25% |
| Max. Tilt | 3°/ 1.5° |
| Turning Radius(inside) | 0 |
| Turning Radius(outside) | 2.19 |
| Raise/lower speed | 24/54sec |
| Non-marking tires | Φ381×127 |
| | |
| Power | |
| Power Source | 24V/3.3KW |
| Battery | 4x6V/225Ah |
