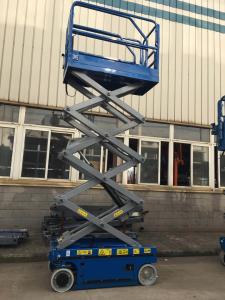

Self Propelled Electric Scissor Lift Platform Norrow 8m Hydraulic Drive
Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
Standard features
● Cylinder holding valve
● Onboard diagnostic system
● Flashing Beacon
● All Motion Alarm
● Proportional control
● Automatic Pothole Guard System
● Solid non-marking tires
● Auto brake system
● Emergency platform lowering system
● Emergency stop button
● Hour meter
● Motion alarm
● Electronic horn
● Extension platform
● Descent alarm
● Descent protection
● Tilt protection system
● Folding rails
● Protection bar around chassis
Production Specification
| Production Specification | JCPT1008HD |
| Measurement | |
| Working Height Max. | 10m |
| A Platform Height Max. | 8m |
| B Platform Height Stowed | 1.83m |
| C Platform Length-outside | 2.40m |
| Extended | 3.30m |
| Slide-out Platform extension deck | 0.90m |
| D Platform Width | 0.81m |
| E Height-stowed: guardrail raised | 2.32m |
| F Length-Stowed | 2.43m |
| G Width | 0.87m |
| H Wheel Base | 1.87m |
| I Ground Clearance | 10cm |
| J With Pothole Guards Deployed | 1.9cm |
| | |
| Productivity | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 230kgs |
| Drive speed-stowed | 3.5km/h |
| Drive speed-Raised | 0.8km/h |
| Gradeability | 25% |
| Max. Tilt | 3°/ 2° |
| Turning Radius(inside) | 0 |
| Turning Radius(outside) | 2.19 |
| Raise/lower speed | 28/40sec |
| Non-marking tires | Φ381×127 |
| | |
| Power | |
| Power Source | 24V/3.3KW |
| Battery | 4x6V/225Ah |
