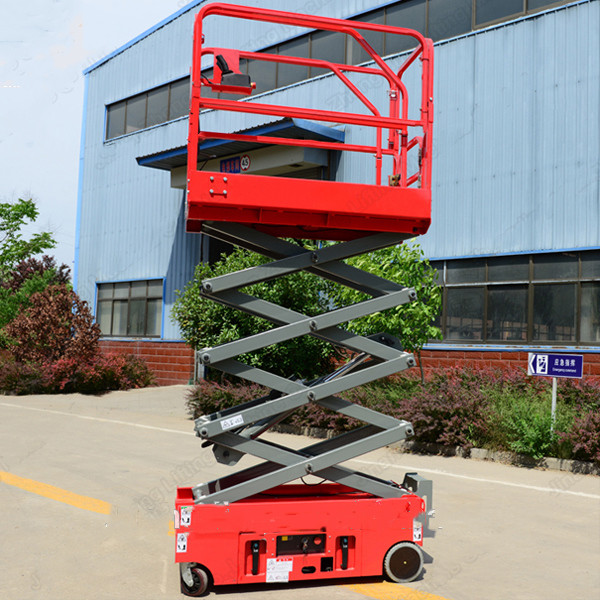

Extendable Vertical Electric Scissor Lift Small Lightweight Aerial Lifts

Name: Extendable Vertical Electric Scissor Lift Small Lightweight Aerial Lifts
Brand: Yamei
Price: 1 USD

Brand Name : Yamei

Model Number : JCPT1012HD

Certification : CE, ISO9001, ISO14001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 units 30 days

Delivery Time : 30 working days

Packaging Details : Standard package suitable for container shipment

Surface : painting

Drive : hydraulic

Color : Painted

Control : Proportional

Platform : extendable

Tire : Solid non-marking

Contact Now

Electric Scissor Lift Platform Lift Height 8m Working Height 10m Hydraulic Drive

Products advantages

Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward, turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency

Standard features

● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis

● Cylinder holding valve
● Onboard diagnostic system

● Flashing Beacon

● All Motion Alarm

Extendable Vertical Electric Scissor Lift Small Lightweight Aerial Lifts

Production Specification

Extendable Vertical Electric Scissor Lift Small Lightweight Aerial Lifts

Production Specification	JCPT1012HD
Measurement
Working Height Max.	10m
A Platform Height Max.	8m
B Platform Height Stowed	1.79m
C Platform Length-outside	2.43m
Extended	3.33m
Slide-out Platform extension deck	0.90m
D Platform Width	1.15m
E Height-stowed: guardrail raised	2.32m
F Length-Stowed	2.43m
G Width	1.21m
H Wheel Base	1.87m
I Ground Clearance	10cm
J With Pothole Guards Deployed	1.9cm

Productivity
Max. Platform Occupancy	2
Lift Capacity	450kgs
Drive speed-stowed	3.5km/h
Drive speed-Raised	0.8km/h
Gradeability	25%
Max. Tilt	3°/ 2°
Turning Radius(inside)	0
Turning Radius(outside)	2.33
Raise/lower speed	28/38sec
Non-marking tires	Φ381×127

Power
Power Source	24V/3.3KW
Battery	4x6V/225Ah
